ONSITE PFAS DESTRUCTION WITH
Obreak™ ELECTRO-OXIDATION
Break Free from PFAS™

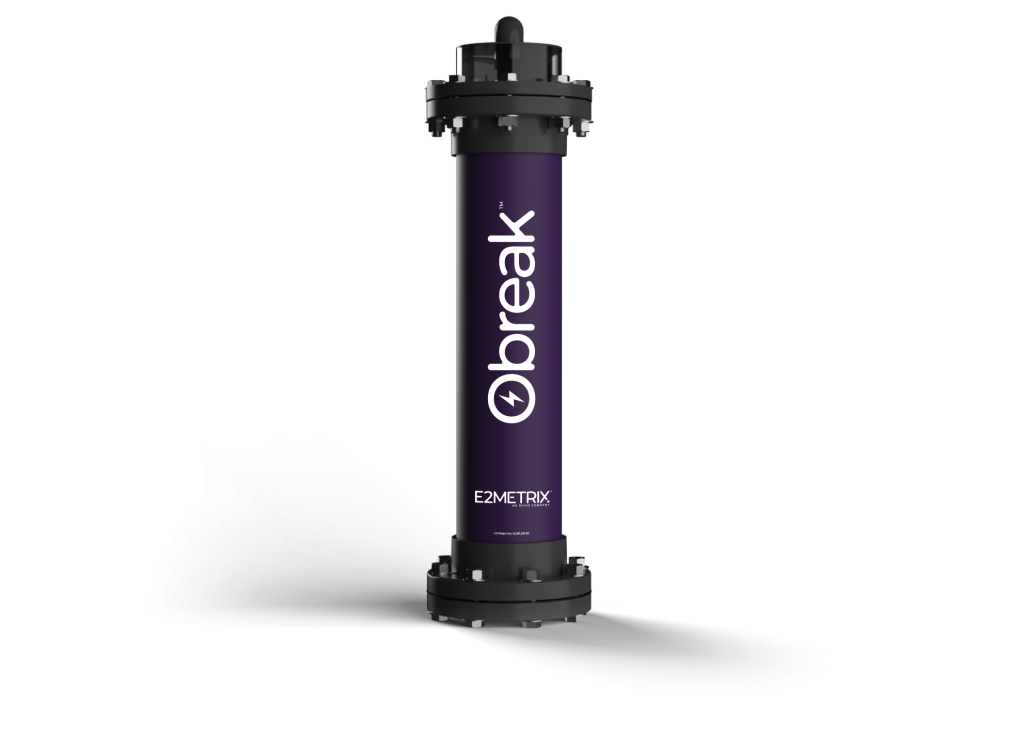

Meet the breakthrough PFAS destruction technology by E2METRIX™: Obreak™.
PFAS, per- and polyfluoroalkyl substances commonly known as “forever chemicals,” are persistent, toxic compounds that contaminate water, wastewater, and landfill leachates. Found in everything from industrial waste to consumer products, PFAS pose significant risks to public health and our ecosystems.
Now there is a cost-effective and proven solution to destroy and eliminate these harmful chemicals.
The patented electro-oxidation (EO) system by E2METRIX™, an Ovivo company, incorporates over a decade of developing, designing, and fabricating commercial EO solutions. The Obreak™ solution will destruct long- and short-chain PFAS into harmless carbon dioxide (CO2) and fluoride (F-) minerals.
The Obreak™ system operates safely at ambient temperatures and pressures; is fully automated, energy efficient, and easy to maintain; and can be operated remotely.
This system provides on-site PFAS destruction, eliminating off-site transportation, disposal, and liability concerns related to managing PFAS-contaminated waste streams.
Pair Obreak with the E2METRIX™ Olift™ continuous ozone foam fractionation system, and you have an integrated, innovative, and cost-effective solution for removing, concentrating, and destroying PFAS onsite.
THE PROBLEM
Harmful and widespread PFAS contamination is an urgent public health and environmental threat.
Common treatment approaches for removing PFAS from water, wastewater, and landfill leachates involve separation through reverse osmosis or adsorption using a media such as granular-activated carbon and ion-exchange resin. In these cases, PFAS is simply separated from the water, wastewater, and leachate and concentrated into either a liquid or a solid waste stream, both of which require additional and costly off-site management for disposal.
Without proper cradle-to-grave management of these concentrated waste streams, PFAS could be re-released into the environment, exposing treatment providers to major financial and legal liabilities.
THE E2METRIX SOLUTION
The Obreak™ system uses patented electro-oxidation technology to degrade PFAS into harmless mineral components, reducing or eliminating the need for costly off-site disposal.
When Obreak™ is combined with upstream removal and concentration technologies such as RO, foam fractionation, or regenerable ion-exchange systems, the destruction of the concentrated PFAS liquid waste can have substantially lower long-term costs and reduced liabilities compared to current adsorption-only-based PFAS removal solutions.

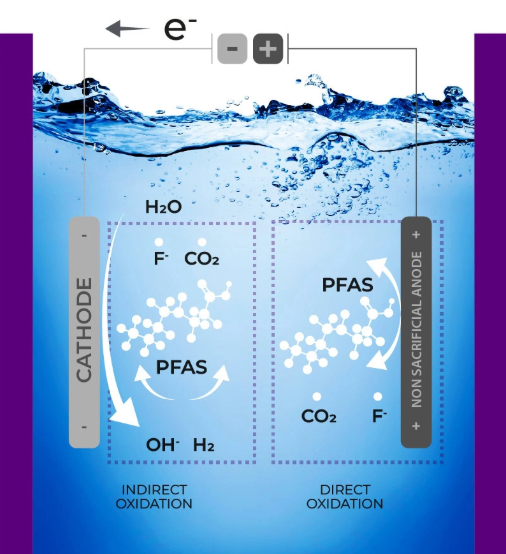

HOW IT WORKS
Using patented electro-oxidation (EO) technology, the Obreak system effectively breaks down persistent contaminants, including PFAS, into their harmless mineral components.
The system operates by passing an electrical current through non-sacrificial electrodes (anodes and cathodes), thereby exposing PFAS compounds to highly energetic electrons.
This process breaks the strong carbon-fluorine (C-F) bonds in the PFAS compounds over time, converting them into harmless carbon dioxide and fluoride minerals—all while operating safely at low temperatures and pressures.
APPLICATIONS
- Reverse osmosis concentrates
- Landfill leachates
- Ion-exchange regenerates
- Industrial wastewater
- AFFF-impacted groundwater
- Wastewater effluents
BENEFITS & KEY FEATURES
Effective
Up to 99.9% PFAS destruction on long- and short-chain PFAS.
Onsite Destruction
Eliminates transportation and liability concerns.
Cost-Effective
Reduces long-term treatment and disposal costs compared to adsorption-only approaches.
Sustainable
Mineralizes PFAS into non-harmful products, eliminating them once and for all.
Efficient
Optimizes powerful oxidation reactions for lower capital expenditure and energy consumption.
Automated and Remote Operation
Ensures ease of maintenance and monitoring.
Continuous
Uninterrupted operation with automated cleaning cycles.
Scalable
Modular design allows for the system to easily scale from gallons per minute to millions of gallons per day.
Easy to Operate and Safe
The automated cleaning process and low pressure and temperature operating conditions facilitate simple and safe operations.
