Micro Ozzy™ Screen
Compact Screen, Big Results
The Micro Ozzy™ Screen is a next-generation system that integrates Ovivo’s proven drum screen technology with dewatering equipment.
A scaled-down version of the Ozzy™ Cup Screen, the Micro Ozzy is housed in a compact, self-contained tank that can handle flows up to 1 MGD. It delivers exceptional performance while maintaining a small footprint, making it the ideal solution for water and wastewater screening.
And it is available in a packaged, stocked, and ready-to-ship unit. Prebuilt in 316 stainless steel with explosion-proof motors, the Micro Ozzy includes a control panel and can be paired with any aperture size.
THE PROBLEM
Space-constrained environments and the need for efficient fine screening solutions can pose significant challenges in water and wastewater treatment.
THE OVIVO SOLUTION
The Micro Ozzy offers a compact, high-performance screening solution with superior capture ratios and exceptional solids handling capabilities. Its integrated system ensures seamless operation, making it perfect for space-constrained environments.
HOW IT WORKS
The Micro Ozzy features a robust cup drum and a solid horizontal main shaft, all housed within a stainless-steel tank.
Flow enters the system either by gravity or pump, moving through the drum screen and out through mesh panels, which are automatically cleaned by spray wash nozzles. Screenings are efficiently captured and conveyed to dewatering equipment, ensuring a smooth, uninterrupted process.
APPLICATIONS
- Temporary bypass for low-flow situations
- Final fine screening for membrane protection
- Water and wastewater screening
- Side-stream treatment
Our ProPaPanel®® Technology
The patented ProPaPanel® sets a new standard in screening technology with a design that delivers unmatched durability, efficiency, and long-term performance in wastewater environments.
Engineered for Superior Screening Performance
- Tapered Round Holes
Designed for performance, our tapered round holes dramatically improve cleaning efficiency, reduce clogging, and eliminate hair pinning. They also enhance cleaning under wash water, ensuring consistent operation. - Unmatched Capture Efficiency
Unlike traditional slots, the round holes increase capture rates by approximately 225%, making the ProPaPanel one of the most effective screening solutions available. - Hair Capture without Shearing
Unlike perforated plates with sharp edges that shear hair and allow it to pass downstream, the ProPaPanel gently captures hair and fibrous materials, preserving system integrity and reducing downstream load. - Optimized Thickness (9mm)
The 9mm panel thickness virtually eliminates carpeting and stapling—common issues in many screening systems. - Built to Last
Made from a high-strength, impact-resistant co-polymer, the ProPaPanel is corrosion-proof and built to withstand harsh wastewater environments. Panels in operation for over 20 years look almost as clean as the day they were installed. - Flexible and Customizable
The ProPaPanel can be thermoformed and segment-welded to meet your exact sizing and shaping requirements. - Patented and Proven
Our patented design ensures long-lasting performance and reliability, reducing maintenance costs and extending service life.
BENEFITS & KEY FEATURES
Compact Design
Small footprint, big results—perfect for space-constrained environments.
Integrated System
Fully tanked drum screen with dewatering equipment for seamless operation.
High Performance
Superior capture ratios with exceptional solids handling capabilities.
Reliable and Consistent
Designed for constant flow applications with high reliability.
Versatile Screening
Screening capabilities from 0.2 inches (6 mm) down to 0.02 inches (0.5 mm) to meet site-specific needs.
Financial Flexibility
Available for purchase, rental, or lease-to-own.
Durable Construction
Fabricated in 316 stainless steel for enhanced durability and corrosion resistance.
Customizable Options

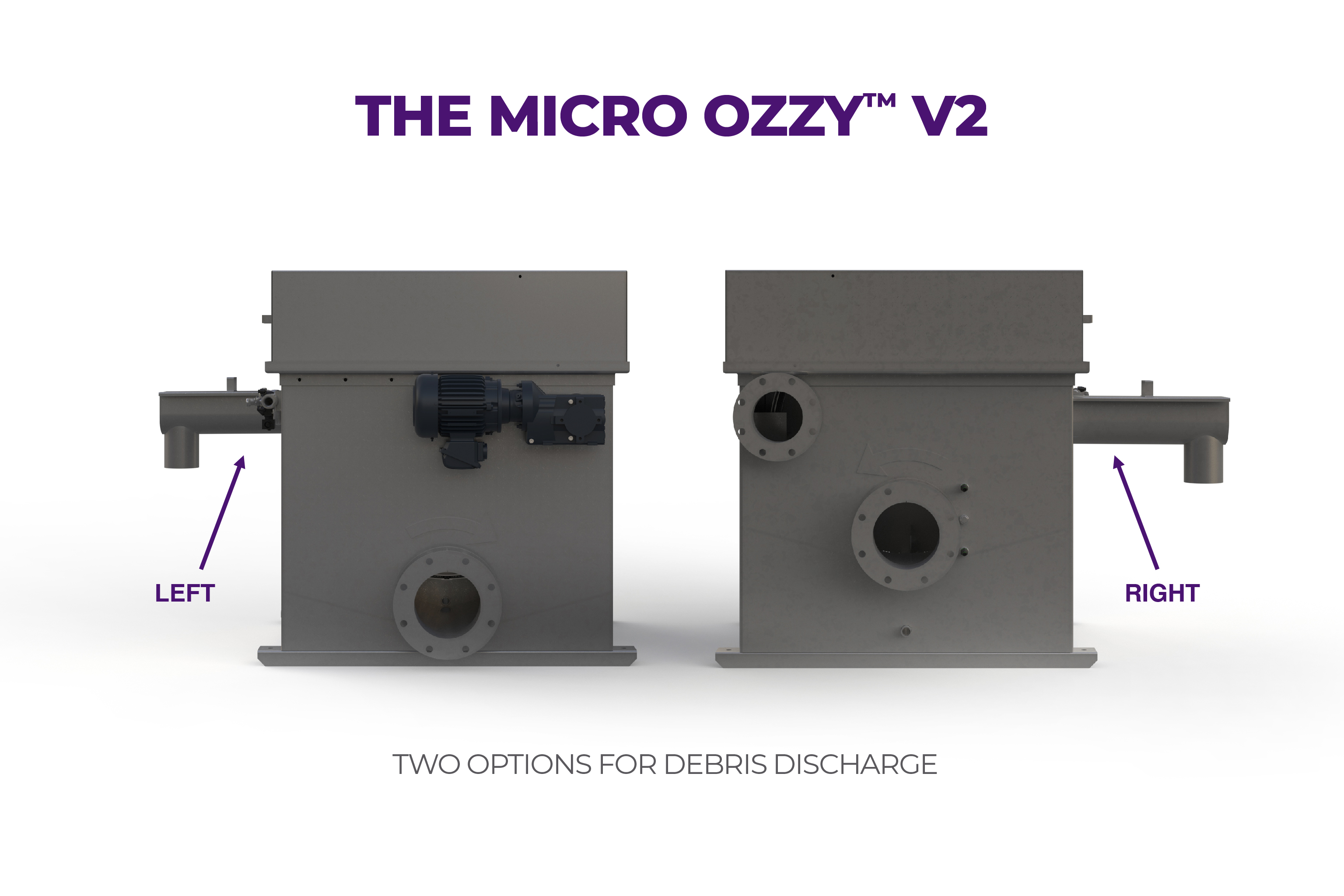

Includes left- or right-hand discharge, compactor selection, and various mesh sizes.
Integrated Controls
Supports 24-hour operations, triggered by pump or upstream level signals.
Easy Installation
Designed for easy installation and relocation using a forklift to best fit your plant’s needs.
