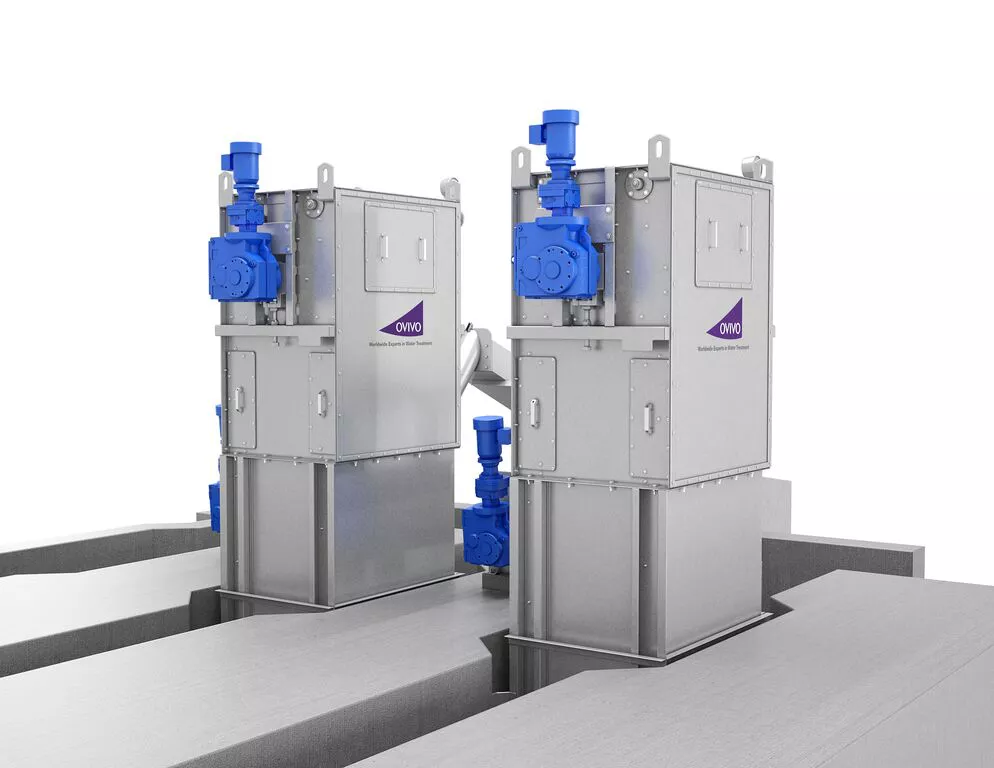

Brackett Green® CF100® Band Screen
YOUR MBR PRETREATMENT ALLY
The Brackett Green® CF100® Band Screen is your solution to meet the increasing demands for high-capacity fine screening of raw water or wastewater.
This screen is an ideal pretreatment solution for membrane bioreactor (MBR) and other water treatment applications.
Its patented ProPaPanel® technology eliminates hair pinning and blinding, reducing maintenance costs.
THE PROBLEM
High-capacity fine screening of raw water or wastewater is essential for efficient water treatment processes. Traditional screening methods often struggle with issues such as hair pinning, carryover, and high-maintenance requirements, leading to increased downtime and operational costs.
THE OVIVO SOLUTION
The Brackett Green® CF100® Band Screen provides a high-capacity, low-maintenance solution for fine screening. Featuring ProPaPanel® technology, this screen prevents hair pinning and ensures zero carryover, independently proven to remove 90% of two-dimensional screenings.
The single-motor design reduces running, ancillary, and electrical costs, while low-pressure jet cleaning prevents blinding and eliminates the need for brushing or manual cleaning.

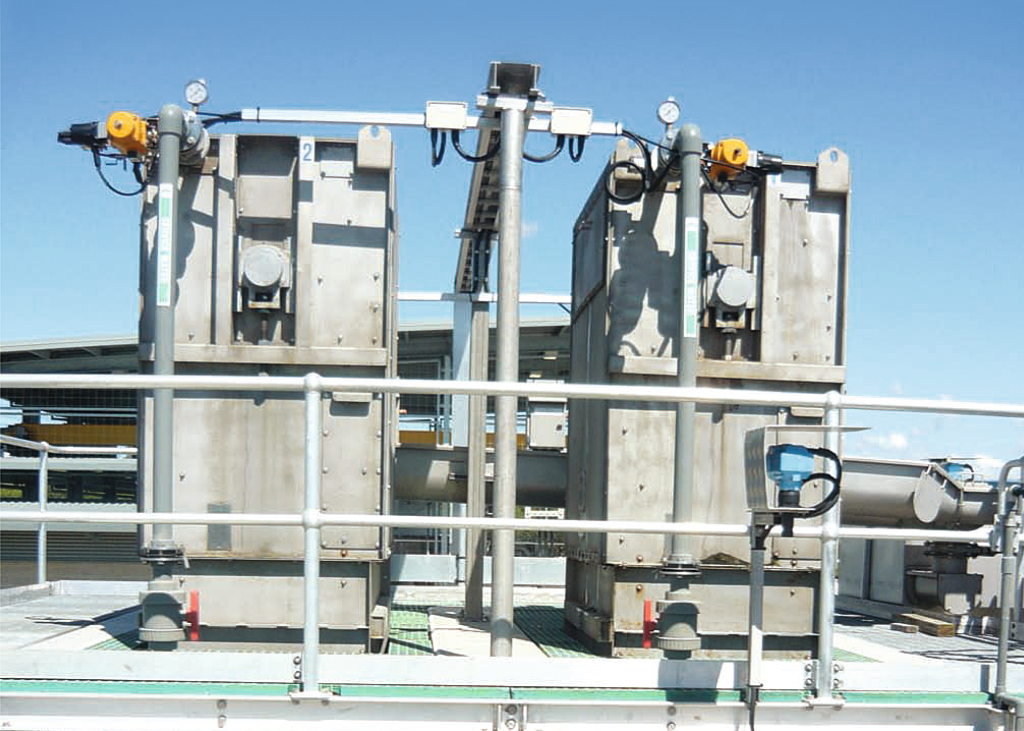

For ease of installation, the screens are supplied as free-standing single units. The rigid frame construction, enclosed head section with access panels, and anti-friction bearings ensure reliable operation.
HOW IT WORKS

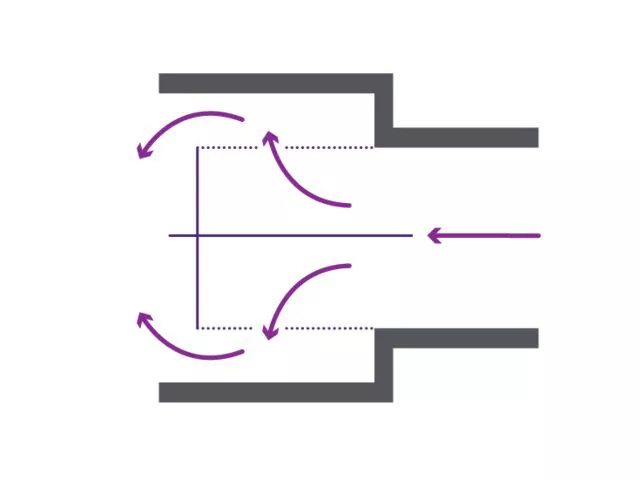

The Brackett Green® CF100® Band Screen features a central flow design, where water enters the center of the screen first. This pattern is the most efficient means of removing suspended solids for wastewater applications and eliminates the problem of carryover found in traditional straight-through and step-type screens.
Wastewater flows outward through a moving band of polymer mesh panels, retaining screenings on the inside of the panels. Low-pressure water jets mounted inside the screen head section continuously clean the panels during the cleaning cycle, discharging debris at deck level. The patented tapered hole, thick polymer mesh panels actively discourage hair pinning and do not require brush cleaners.
For special applications, the flow can be reversed, ensuring effective and efficient screening.
APPLICATIONS
- Sewage treatment plants
- Water reclamation facilities
- Wastewater treatment plants
- Combined stormwater overflows
- Potable water treatment plants
- MBR pretreatment

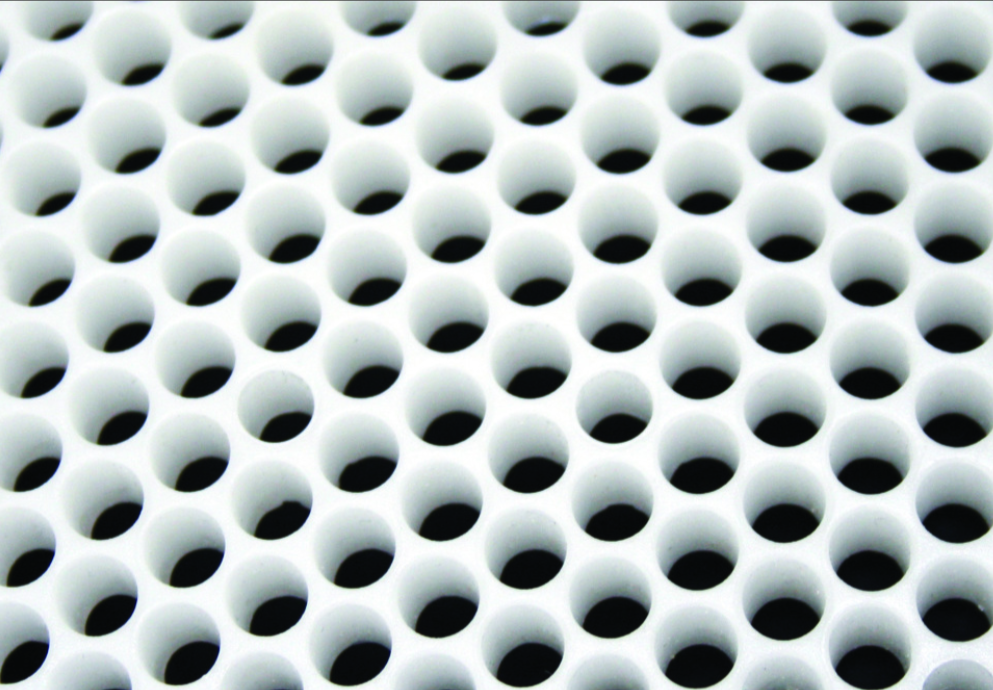

Our ProPaPanel® Technology
The patented ProPaPanel® sets a new standard in screening technology with a design that delivers unmatched durability, efficiency, and long-term performance in wastewater environments.
Engineered for Superior Screening Performance
- Tapered Round Holes
Designed for performance, our tapered round holes dramatically improve cleaning efficiency, reduce clogging, and eliminate hair pinning. They also enhance cleaning under wash water, ensuring consistent operation. - Unmatched Capture Efficiency
Unlike traditional slots, the round holes increase capture rates by approximately 225%, making the ProPaPanel one of the most effective screening solutions available. - Hair Capture without Shearing
Unlike perforated plates with sharp edges that shear hair and allow it to pass downstream, the ProPaPanel gently captures hair and fibrous materials, preserving system integrity and reducing downstream load. - Optimized Thickness (9mm)
The 9mm panel thickness virtually eliminates carpeting and stapling—common issues in many screening systems. - Built to Last

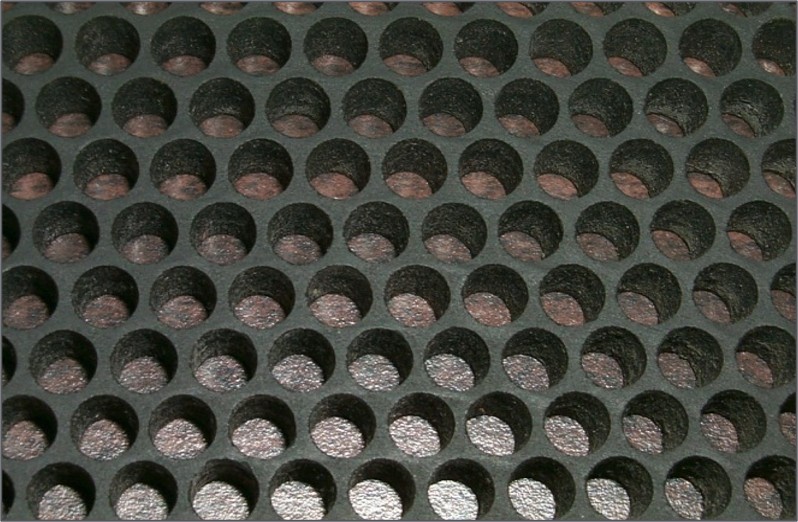

Made from a high-strength, impact-resistant co-polymer, the ProPaPanel is corrosion-proof and built to withstand harsh wastewater environments. Panels in operation for over 20 years look almost as clean as the day they were installed. - Flexible and Customizable
The ProPaPanel can be thermoformed and segment-welded to meet your exact sizing and shaping requirements. - Patented and Proven
Our patented design ensures long-lasting performance and reliability, reducing maintenance costs and extending service life.
BENEFITS & KEY FEATURES
High Efficiency
Rated No. 1 by professional independent study.
Patented Design
Eliminates hair pinning and reduces maintenance costs.
Zero Carryover
Patented seals offer industry-leading carryover reduction.
High Debris Capacity
Large debris capacity for efficient operation.
Cost Savings
Single-motor design reduces running, ancillary, and electrical costs.
Ease of Installation
Supplied as a free-standing single unit.
Low Maintenance
Low-pressure jet cleaning prevents blinding and eliminates the need for brushing or manual cleaning.
