EIMIX® Sludge Mixer
Meet Any Digester Mixing Requirement—Guaranteed
The EIMIX® Sludge Mixer is an anaerobic digestion system with an efficient, low-energy design. This innovative solution ensures thorough mixing, providing uniform temperature, solids distribution, and microorganism contact with the incoming sludge—all with minimal maintenance.
The EIMIX mixer can be used in existing and new anaerobic digesters and customized to suit specific tank designs and applications. It’s a cost-effective choice for wastewater treatment plants that need enhanced biosolids management operations.
THE PROBLEM
Effective biosolids management and anaerobic digestion are critical for wastewater treatment plants. Inadequate mixing can lead to operational upsets, costly downtime, and unpleasant odors. Traditional mixing methods often require frequent maintenance and degassing or dewatering of the digester.
THE OVIVO SOLUTION
The EIMIX Sludge Mixer offers a reliable and efficient solution for anaerobic sludge mixing. Guaranteed to meet any digester mixing requirement, the EIMIX mixer ensures thorough mixing, optimal conditions for microorganisms, and minimal maintenance. It’s available in a variety of configuration options, and the reversible operation enables pumping with equal capacity in both directions, maximizing system flexibility.
HOW IT WORKS

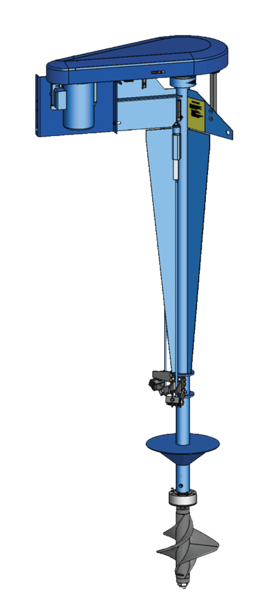

The EIMIX mixer is a mechanical mixing device that uses draft tubes to mix sludge in an anaerobic digestion tank.
Axial flow propellers can be rotated in either direction, allowing for flexible mixing dynamics. The propellers are symmetrical about both axes, which enables the mixer to pump sludge in either direction.
Meanwhile, the reversible flow allows for adjustments to the mixing dynamics, ensuring thorough mixing of the sludge and optimal conditions for the microorganisms involved in the digestion process.
APPLICATIONS
- Municipal wastewater treatment plants
- Industrial wastewater treatment facilities
BENEFITS & KEY FEATURES
Low Maintenance
Maintenance can be performed without degassing or dewatering the digester.
Uniform Heating
Compatible with heat exchanger jackets for uniform heating.
Flexible Installation
Designed with internal roof-mounted draft tube (RDT) or external-mounted draft tube (EDT).
Customizable
One or more units can be installed across a tank to suit specific mixing needs.
Reversible Operation
Enables pumping with equal capacity in both directions, maximizing system flexibility.
Existing or New Digesters
Compatible for installation on existing or new primary or secondary digesters.
